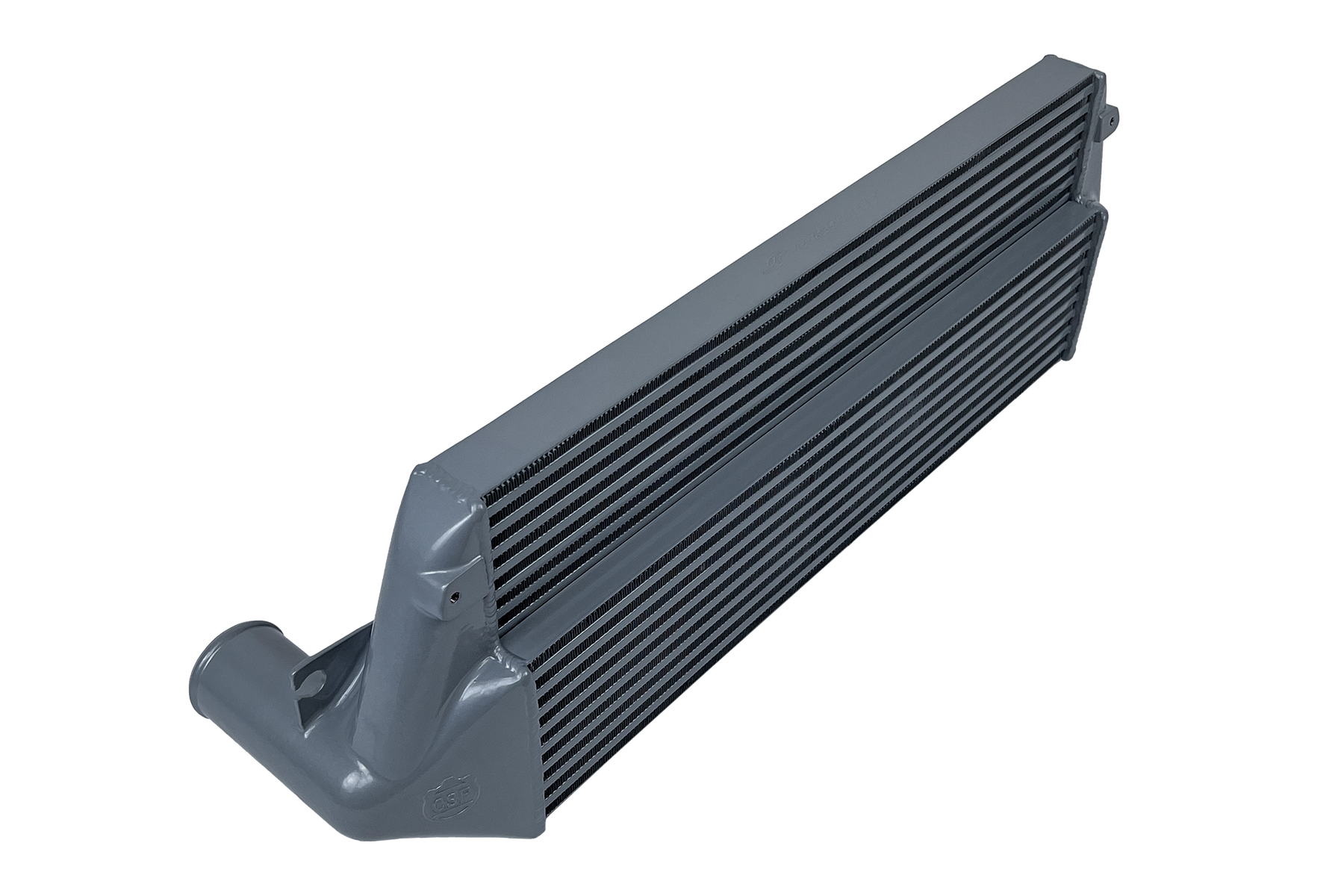

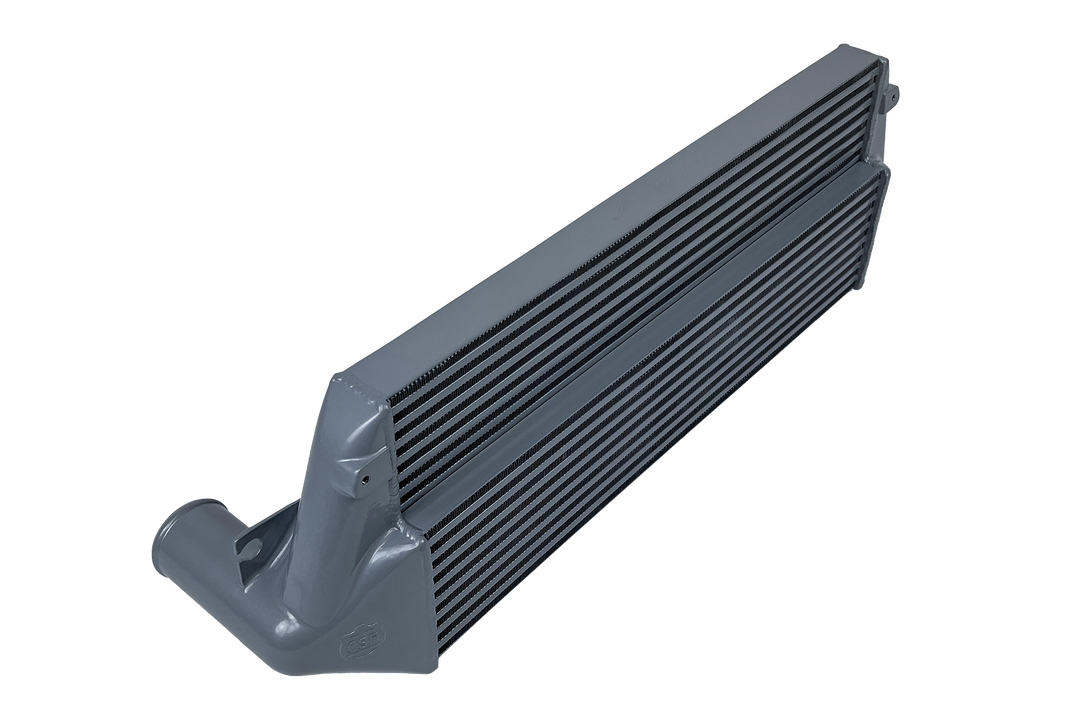

The CSF 2023+ Toyota GR Corolla High Performance Stepped Core Intercooler System in silver is designed for the hottest hatch on the market - the GR Corolla. Its 1.6L three-cylinder turbo motor, also featured in the GR Yaris, is an impressive feat of engineering with plenty of potential for growth. Coupled with its all-wheel-drive system and top-tier suspension and chassis, the GR Corolla is a formidable competitor. Aftermarket companies were quick to jump on board with tuning options, thanks to prior development on the GR Yaris. However, there was a high demand for a performance intercooler right from the start. In response, CSF and Jackson Racing teamed up to offer the most advanced and efficient intercooler on the market. Independent testing by Moto IQ found it to be "The BEST Performing Intercooler We've Ever Tested."
- High-Performance Tube & Fin Stepped Core Design for Maximum Surface Area Contact and Internal Air-Flow Volume
- Largest “Drop-in Fit” Intercooler Available in the Industry
- Designed with 3D Scanning/Rapid Prototype Technology to Ensure Precise Fitment and Maximum Surface Area Utilization
- 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability

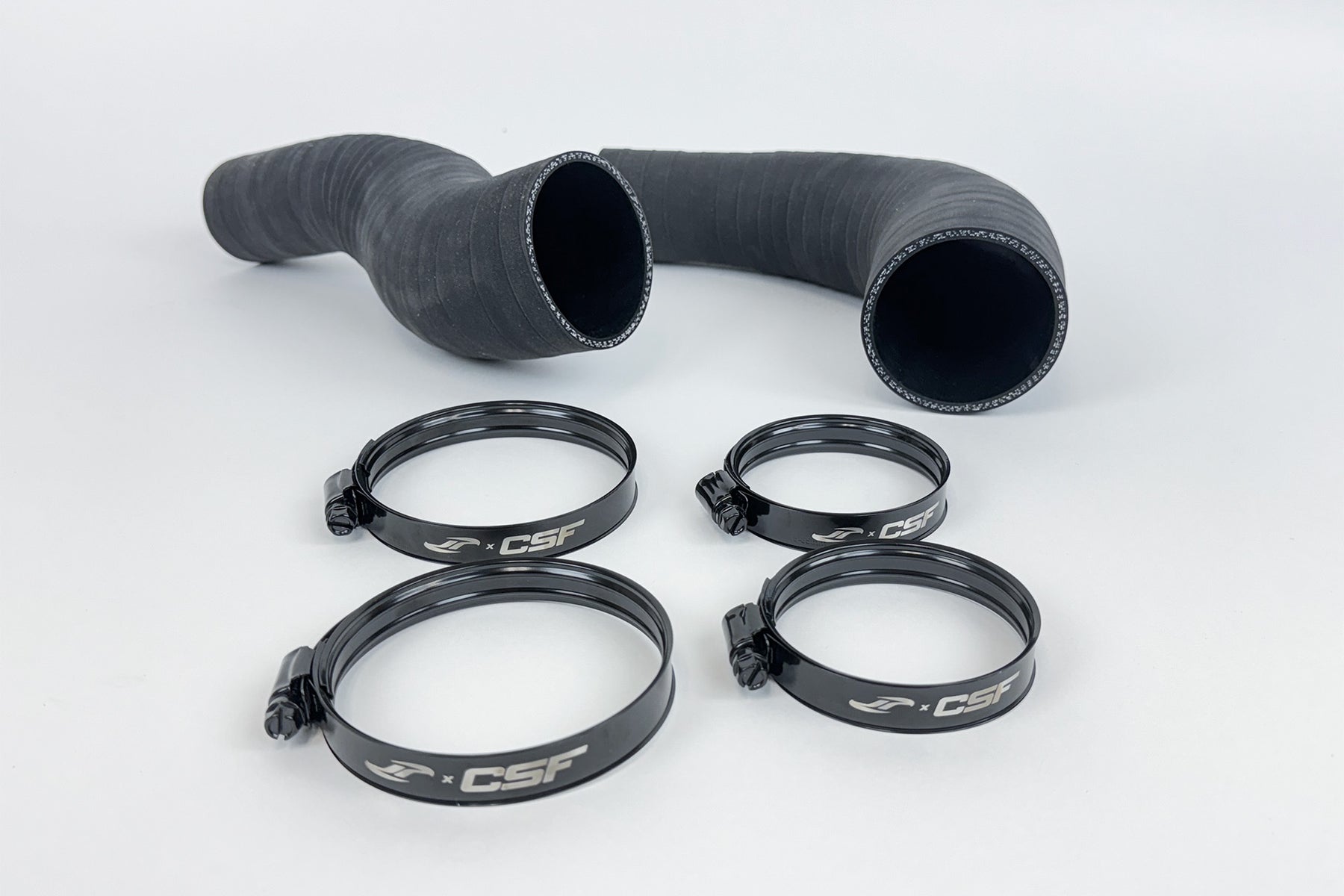

- Includes Motorsport Grade Hoses and Clamps with larger 2.5in (63.5mm) Inlet/Outlet Connections

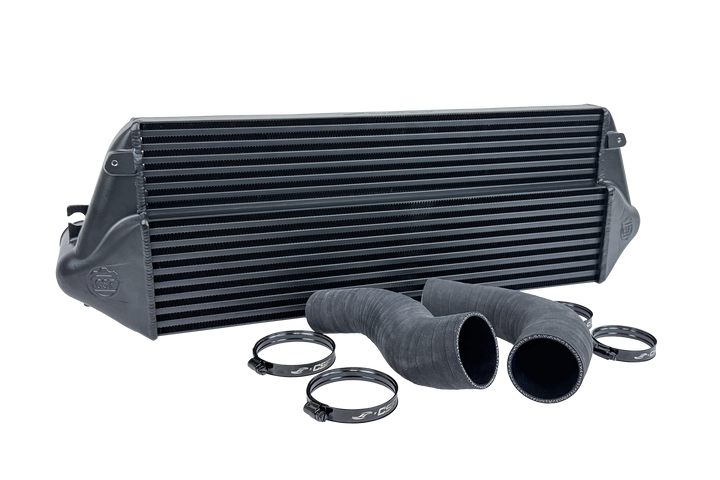

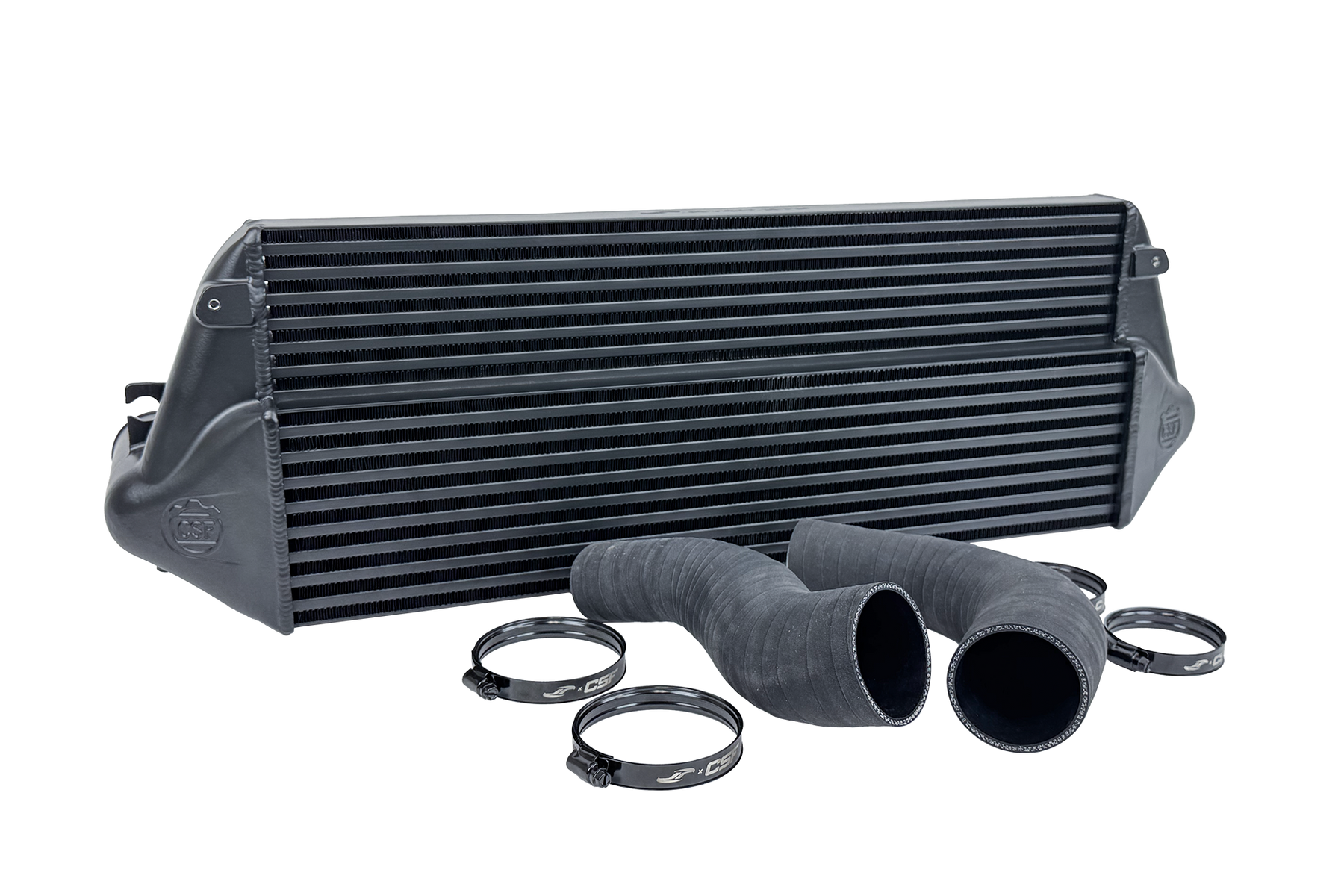

- Available in Silver (#8285) and Black (#8285B) Finishes
- True Plug-and-Play “Drop-in Fit” Installation. The OE Air Ducting requires minor trimming to be used with the Intercooler
- Individually Leak and Pressure Tested
- 2-Year Limited Warranty
- Real World Testing by MotoIQ
-
Applications:
- 2023+ Toyota GR Corolla
- OEM Part Numbers:
- Toyota: JD127000-1630
| Feature | CSF | OEM |
|---|---|---|
| # Cooling Tubes | 15 | 9 |
| # Cooling Fin Rows | 16 | 10 |
| Fin Height | 8.5mm (bottom) & 7.5mm (top) | 7.9mm |
| Core Thickness | 86mm (bottom) & 40mm (top) | 80mm |
| Core Material | Aluminum | Aluminum |
| Tank Material | Aluminum | Plastic & Aluminum |
| Construction | 100% TIG Welded | Crimp on Gasket |
