Radium 12-21 Toyota GT86 / 12-20 Subaru BRZ / 12-16 Scion FR-S Fuel Hanger
Drop-in fuel pump hanger for the 2012-2021 Subaru BRZ, Scion FR-S, Toyota GT86. Can be used with one or two compatible fuel pumps (sold separately). E85 compatible.
COMPATIBILITY
12-21 Toyota GT86
12-20 Subaru BRZ
12-16 Scion FR-S
OVERVIEW
The new Radium Engineering fuel pump hanger has been redesigned for improved fuel collection and for ease of installation. It completely replaces the factory in-tank fuel pump module and allows 1 or 2 aftermarket fuel pumps to be used. The OEM level sender is retained in order to maintain factory functionality.

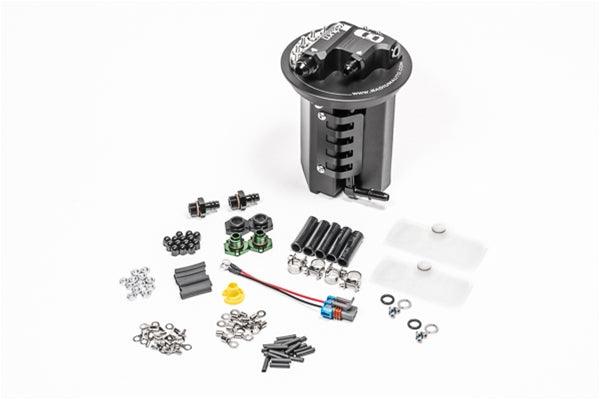

Part number 20-1073 (shown above) is specific to the 12-21 Toyota GT86, Subaru BRZ, and Scion FR-S fuel tanks.
FUEL PUMP COMPATIBILITY
*Ti Automotive Walbro F90000267
*Ti Automotive Walbro F90000274
*Ti Automotive Walbro F90000285
**Deatschwerks DW440 (brushless)
**Fuelab 49614 (brushless)
**Protec 11928 (brushless)
There will be enough components included to use 1 or 2 fuel pumps. Depending on the setup, some parts will simply not be used.
*Sock filters are provided in these kits for these fuel pumps.
**Sock filters are included from the fuel pump manufacturer.
FEATURES
-8AN ORB to 8AN Male Pump-Out Fitting
-6AN ORB to 6AN Male Return Fitting
-Collector Box with 1-Way Fill Valve
-Venturi Jet Pump Siphon
-High Current Electrical Connections
-Anodized Fuel Level Sender Mount
-Twin Fuel Pump Compatibility
-Brushless Pump Compatibility
-Single Merged Fuel Pump Outlet
-Stainless Hardware and Clamps
-Alternative Fuel Compatibility
