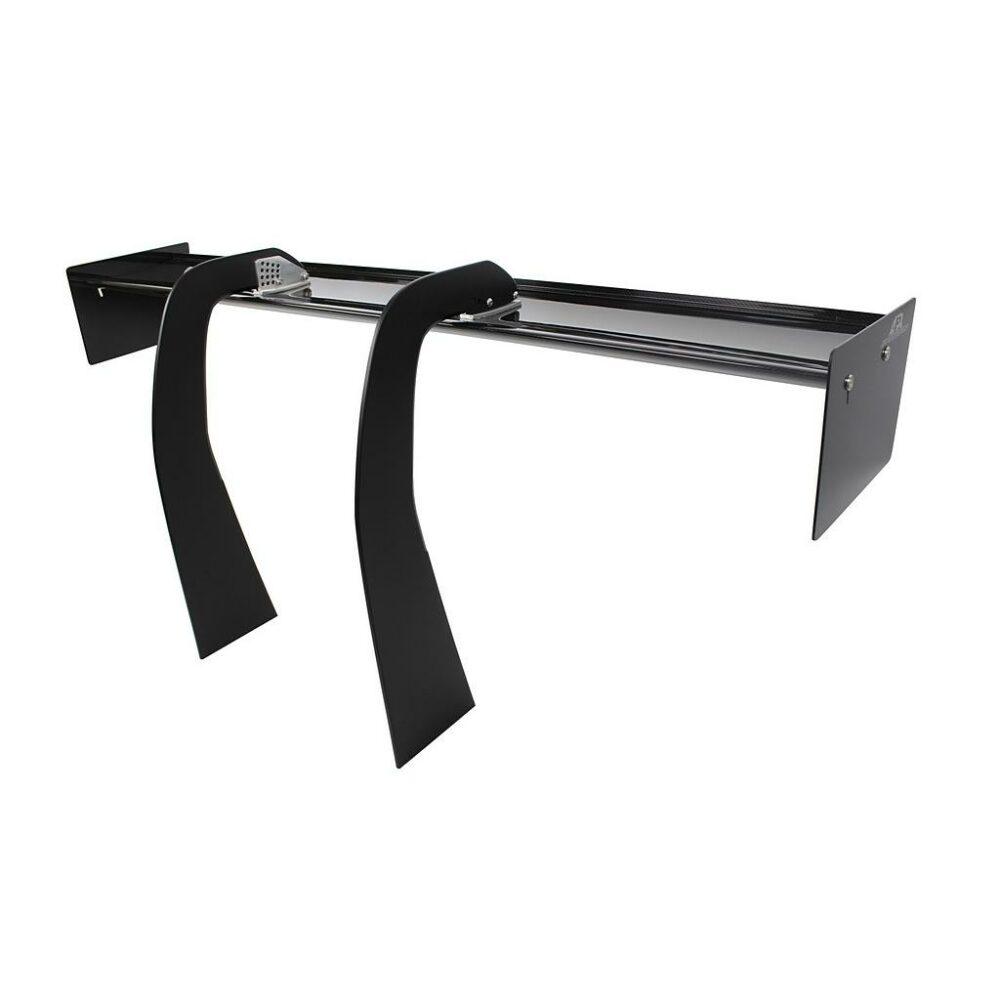

APR PERFORMANCE CARBON FIBER GT-250 71″ UNIVERSAL SWAN NECK ADJUSTABLE WING
The APR Performance GT-250 Adjustable Wing with Swan Neck pedestals incorporates a streamlined 2D airfoil shape that effectively generates significant downforce while minimizing drag. By utilizing swan neck pedestals, this design prevents flow separation that can diminish downforce in traditional bottom-mount pedestal setups. The swan neck configuration enables a higher Angle-of-Attack (AOA) to be achieved before stalling occurs, surpassing the capabilities of standard bottom-mount pedestals.
DOWNFORCE BALANCE
- Front – X
- Center – X
- Rear – ||||||||
BENEFITS
- More downforce than the GT-250 standard pedestal version
- Angle adjustment holes allow for easy tuning of downforce
- Reinforced pre-preg carbon fiber withstands extreme loads
SPECIFICATIONS
- Pattern – 2×2 twill weave
- Material – Pre-preg carbon fiber, 3K
- Coating – UV-stable clear coat
- Wing Measurement – Custom span Up to 71″, 10″ chord
- Hardware – Stainless-steel machine screws, washers, and nuts
- Mounting – 6061 billet aluminum brackets/pedestals (no mounting bases included), custom fabrication of chassis-mounts required (double-shear recommended)Swan neck pedestal dimensions: 32″ overall height x 13.5″ overall width x 3/8″ thickness. Standard swan neck pedestal-to-pedestal length: 23″ (custom lengths can be accommodated up to 50″)
FEATURES
- The GT Series wings incorporate an all-new 2D airfoil shape with low drag and exceptional aerodynamics. This “2D” design ensures a consistent level of downforce across the entire span of the wing. To validate its aerodynamic performance, Computational Fluid Dynamics (CFD) analysis was conducted on this wing.
- Each airfoil in the GT Series is crafted from lightweight and durable carbon fiber reinforced polymer (CFRP) composite materials. These airfoils feature pre-pregnated woven carbon fiber sheets, which provide superior strength while keeping the weight to a minimum. The manufacturing process involves using pre-pregnated composite techniques, such as high-temperature autoclave and vacuum bagging, with high-quality aluminum billet molds to create all CFRP airfoils.

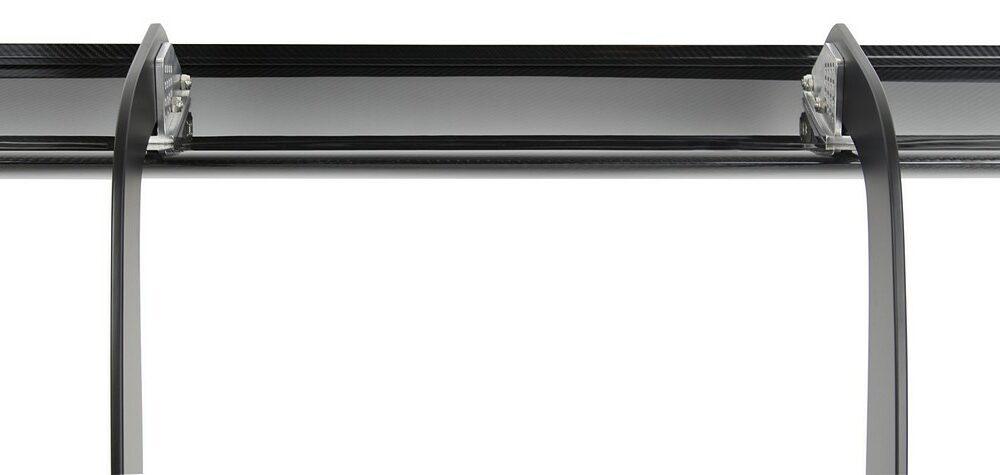

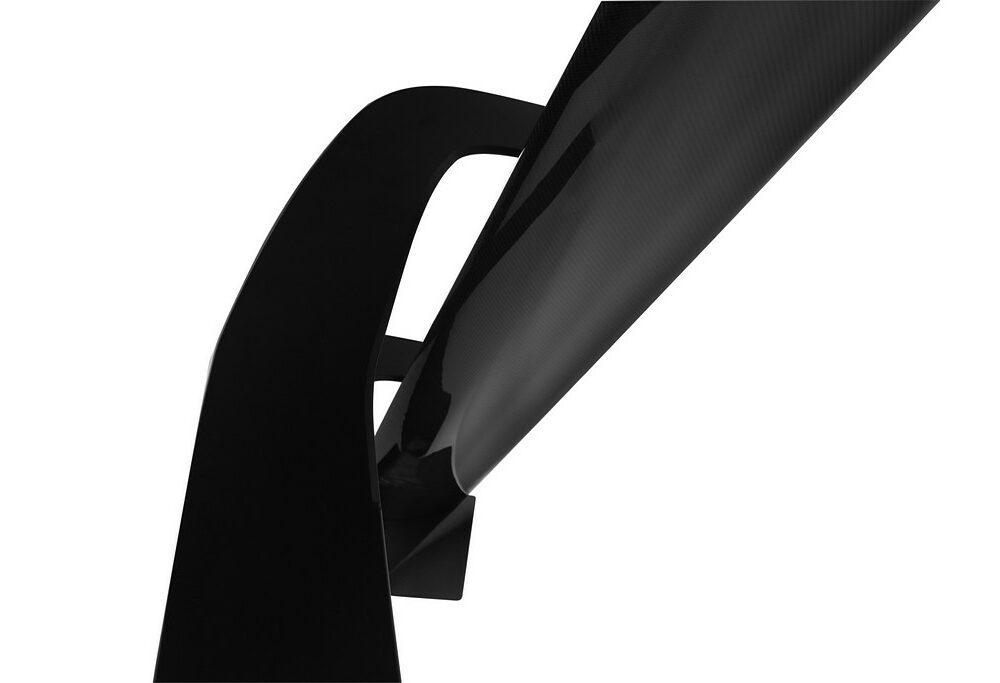

- Supporting the airfoils are 10mm “aircraft grade” 6061 billet aluminum swan neck pedestals that come in a flat black powder coat finish. Each swan neck pedestal is also “knife-edged” at the trailing edge, to minimize the amount of “dirty” air that reaches the airfoil.
KIT CONTENTS
- Includes Swan Neck Pedestals
NOTES
- Every GT-250 wing comes equipped with Gurney flaps, which are already installed for your convenience. These flaps are incredibly lightweight and are manufactured using pre-impregnated carbon fiber processes.
- The standard distance measures 23 inches.
- APR Performance offer custom mounting distance options, but please note that for distances exceeding 30 inches, an additional charge of $185 will apply.
